Achieving high-quality images is crucial for various optical applications, including microscopy, medical imaging, laser machining, photography, remote sensing, and robotic assisted imaging. One significant challenge in optical systems is aberrations, which degrade image quality by causing distortions and blurring. Aberration correction techniques are essential to enhance the performance of optical systems by minimizing or eliminating these imperfections. This article explores different aberration correction techniques, their applications, and their significance in achieving optimal optical performance.
Understanding Optical Aberrations
Optical aberrations are deviations from ideal image formation due to imperfections in optical systems. These imperfections arise from lens shape, material properties, alignment errors, and manufacturing defects, causing light rays to deviate from their intended paths and resulting in distortions, blurring, and loss of contrast.
Common types of optical aberrations include:

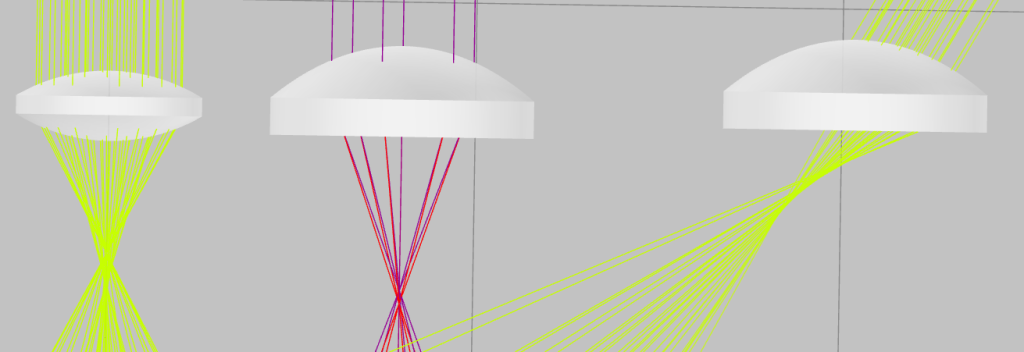

- Spherical Aberration: Occurs when light rays passing through a lens near its edge focus at different points than rays passing through the center.
- Chromatic Aberration: Arises due to the dispersion of light into various colors, causing color fringes around images.
- Astigmatism: Causes images to appear stretched or blurred in specific directions.
- Coma: Results in comet-like tails for off-axis points of light.
- Field Curvature: Leads to curved image planes.
- Distortion: Causes straight lines to appear curved.
Understanding these aberrations is crucial for developing effective correction techniques. By analyzing specific aberrations in an optical system, designers can implement strategies to mitigate their effects and enhance image quality.
Lens Design and Optimization
A fundamental technique for aberration correction in optical design is optimizing lens shapes and configurations. Careful design of lens elements and their arrangements can minimize aberrations and improve image quality. This process involves selecting appropriate lens materials, shapes, and coatings to achieve the desired optical performance.
Aspherical lenses are commonly used to correct spherical aberration. These lenses have non-uniform curvature, allowing them to focus light more accurately, reducing spherical aberration, and achieving sharper images.
Achromatic doublets are effective for correcting chromatic aberration. These lenses combine two types of glass with different dispersion properties, allowing them to focus different wavelengths of light at the same point, significantly reducing color fringing and improving image clarity.
Advanced lens design software and optimization algorithms play a crucial role in aberration correction. These tools enable designers to simulate and analyze various lens configurations, identifying and minimizing aberrations to achieve optimal lens designs with superior image quality.
Wavefront Correction
Wavefront correction techniques address aberrations by manipulating the phase of light waves as they pass through an optical system. These techniques involve using adaptive optics and deformable mirrors to dynamically correct aberrations in real-time. Wavefront correction is particularly important in high-precision applications like astronomy and microscopy.
Adaptive optics systems use wavefront sensors to measure aberrations in incoming light waves. The measured wavefront is then corrected by deforming a mirror to compensate for the aberrations. This real-time correction removes atmospheric distortions in telescopes and improves image resolution and contrast in microscopy.
Deformable mirrors are critical components of wavefront correction systems. These mirrors, made of flexible materials and actuated by an array of small actuators, can change shape in response to electrical signals. By precisely controlling the mirror’s shape, wavefront aberrations can be corrected, leading to improved image quality.
Wavefront correction techniques have revolutionized fields such as astronomy and ophthalmology, enabling researchers and practitioners to achieve unprecedented clarity and detail in their observations and diagnoses.
Digital Image Processing
Digital image processing techniques offer powerful tools for correcting aberrations and enhancing image quality in post-processing. These techniques involve using algorithms to analyze and manipulate digital images, removing distortions and improving clarity. Digital image processing is widely used in photography, remote sensing, and medical imaging.
Deconvolution is a common technique aimed at reversing the effects of blurring caused by aberrations. Deconvolution algorithms use mathematical models to estimate the original, unblurred image by accounting for the optical system’s characteristics, significantly enhancing image sharpness and detail.
Chromatic aberration correction involves aligning and merging the color channels of an image to remove color fringing. These algorithms analyze color differences at edges and adjust the color channels to minimize the fringing effect, crucial in applications like photography.
Distortion correction addresses lens distortions such as barrel or pincushion distortion. Applying geometric transformations to the image, distortion correction algorithms use calibration data to map the distorted image to a corrected one, resulting in straight lines and accurate proportions.
Digital image processing techniques provide a flexible and powerful approach to aberration correction, allowing post-capture adjustments and improvements. By combining optical design with digital processing, designers can achieve superior image quality across various applications.
Material Selection and Coatings
The choice of lens materials and coatings plays a significant role in aberration correction. Different optical materials have varying refractive indices and dispersion properties, affecting how they bend and focus light. By selecting appropriate materials, designers can minimize chromatic aberration and improve overall image quality.
Low-dispersion glass, such as fluorite and ED (extra-low dispersion) glass, is commonly used in high-performance lenses to reduce chromatic aberration. These materials have lower dispersion than standard optical glass, reducing color fringing and improving color fidelity. Incorporating low-dispersion glass elements into lens design helps achieve sharper and more accurate images.
Anti-reflective coatings are applied to lens surfaces to reduce reflections and increase light transmission. By minimizing reflections, these coatings enhance image contrast and reduce ghosting and flare. Multi-layer coatings, consisting of multiple thin layers with varying refractive indices, are particularly effective in reducing reflections across a broad range of wavelengths.
Specialized coatings, such as phase and gradient-index coatings, correct specific aberrations. Phase coatings compensate for phase shifts caused by lens surfaces, improving image sharpness and contrast. Gradient-index coatings, with refractive indices that vary gradually with distance, help correct spherical aberration and enhance image quality.
By carefully selecting lens materials and applying appropriate coatings, designers can effectively reduce aberrations and enhance the performance of optical systems. These material-based solutions are crucial for achieving high-quality images in applications ranging from photography to scientific research.
Hybrid and Aspherical Elements
Hybrid and aspherical elements are advanced optical components that combine multiple correction techniques to achieve superior aberration control. These elements address specific aberrations and provide enhanced image quality in demanding applications.
Hybrid lenses combine different optical materials and design features for optimal performance. For example, a hybrid lens may consist of an aspherical element made from low-dispersion glass combined with a conventional spherical element, correcting multiple aberrations such as spherical and chromatic aberration, resulting in improved image sharpness and color accuracy.
Aspherical elements, with non-spherical surfaces, are highly effective in correcting spherical aberration and other higher-order aberrations. These elements focus light more accurately, reducing distortions and improving image quality. Aspherical elements are commonly used in high-performance camera lenses, microscopes, and other precision optical instruments.
Diffractive optical elements (DOEs) use microstructures to diffract light and achieve specific optical functions, such as focusing or beam shaping. These elements can be designed to correct chromatic aberration and achieve high levels of image quality, used in laser systems, holography, and advanced imaging technologies.
Hybrid and aspherical elements represent the cutting edge of optical design, offering advanced solutions for aberration correction. Combining multiple correction techniques provides superior performance and enables the development of high-quality optical systems.
Conclusion
Aberration correction is a critical aspect of optical design, essential for achieving high-quality images in various applications. Techniques such as lens design and optimization, wavefront correction, digital image processing, material selection, and hybrid elements are vital in minimizing aberrations and enhancing image clarity. By understanding and addressing the specific aberrations present in an optical system, designers can develop solutions that deliver superior performance and meet the demands of modern optical applications. The ongoing advancements in aberration correction techniques continue to drive innovation and enable the development of cutting-edge optical technologies.
